Working drawing children’s room Leon

 19,95 24,95

English language PDF download

Three specially designed furniture pieces for the nursery: a chest of drawers, a bed / cot and a matching cabinet.

Children’s room set León. Three specially designed furniture pieces for the nursery: a chest of drawers, a bed / cot and a matching cabinet. All three pieces from the children’s series Leon stand on tapered legs, giving them a cheerful, light-hearted appearance With the working drawings of this furniture you can build a unique children’s room yourself. DISCOUNT! combination packages León

2 packages: €19.95 (PDF downloads)
3 packages: €24.95 (PDF downloads)

Category: SKU: N/A

Description

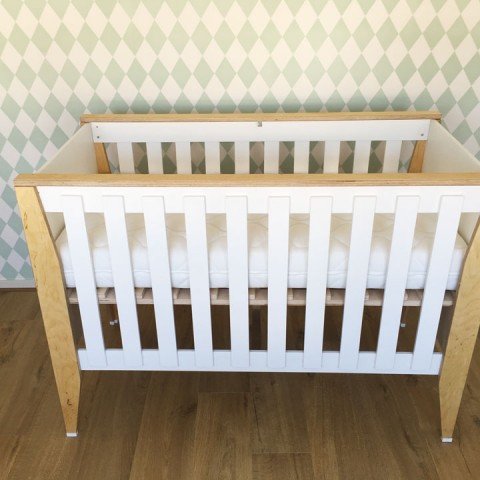

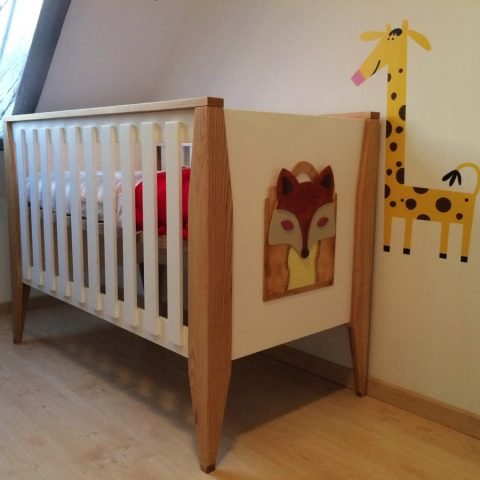

Nursery furniture Leon, built by our customers with this manual

Click on the pictures to see more and larger pictures of this furniture, and to read the experiences of our customers.

Children’s room León: cot, chest of drawers and wardrobe

With these three pieces of furniture, you can build your own unique children’s room! A cot with a height-adjustable bed base, a chest of drawers with four spacious drawers and a cupboard with a hanging area and lots of storage space. The furniture work drawings explain step by step how you can make this furniture yourself. Two variants of the dresser are described: one with steel drawer runners and one with so-called. “Cold conduction”, i.e. without drawer slides.

The design

All three pieces of furniture from the Leon children’s room series stand on rejuvenated (= bevelled) legs, giving them a cheerful, light-footed look. Het mooist worden de meubels wanneer je de poten verstekt kunt zagen (=onder een hoek van 45 graden). Maar dit hoeft niet per se; in de meubelwerktekeningen zijn ook de varianten met een zgn. “stompe montage” beschreven. We pay a lot of attention to keeping screw joints out of sight as much as possible. We also describe how you can make connections with dowels in some places, so that you do not need any screws at all. If you want to paint the furniture in an opaque color, it is sufficient to neatly conceal screw connections with the help of filler. Of course, mitres are also not necessary.

Veiligheid bij kindermeubels

When designing the children’s room furniture, we also took safety into account. All three pieces of furniture are super stable and the cot meets the safety requirements regarding the distance between the bars and the height of the side walls in relation to the bed base.

Gereedschap en handigheid

Finally, the design is tailored to the possibilities and limitations of the do-it-yourselfer and his/her tools. If you have a handsaw (sometimes jigsaw) and drill and can handle it, you can make all our furniture, so to speak. If you have professional tools, it only gets easier. In the case of children’s room furniture Leon, your own circular saw comes in handy.

… zelf aanpassen

As you may have seen from the photos of previously made children’s room furniture Leon (click on the square photos above), it is very easy to make changes in the dimensions and/or design yourself. The clear cutting list and construction drawings will automatically give you the confidence to do so.

The Working Drawings Package

Our working drawings packages are beautifully designed PDF brochures with an average size of 16 pages A4.
All texts and drawings are very clear. At the start you will find the list of necessities such as the wood (sheet material) and screws (size and number), glue and any other parts. It also tells you which tools you need, and a cutting list with the dimensions of the parts of the furniture to be sawn.

Tips

Each furniture drawing contains a number of applicable carpentry tips on choice of materials, sawing, screwing, gluing, sanding and varnishing, etc. When the death is mentioned as an alternative, an explanation is also included. Enough to get started with confidence. Finally, a step-by-step plan contains the manual for assembling the furniture, with clear drawings and clear explanations.

Below you can see three pages from the furniture work drawing of cot León.

Preview Drawing DIY plans cot | bedstead 'Leon' 3-pages

Additional information

Combination Packages

cot + changing table € 19,95, cot + cupboard € 19,95, chest of drawers + cupboard €19.95, bed + chest of drawers + closet € 24,95

Brochure A4

Approximately 16 pages A4 per working drawing with cutting list, clear drawings, clear explanations and smart furniture maker tips.

Download PDF directly

After payment you will immediately receive a download link by email, with which you can download the PDF.

Dutch design

All furniture is our own design, inspired by architecture and interior design.

Flexible design

With the manual and drawings it is easy to make changes to the dimensions and/or design.

You can do it too!

The design takes into account the possibilities and limitations of the DIY and his/her tools.

Skills

Sawing (handsaw, decoupeerzaag), boren, schroeven, lijmen, eventueel deuvelen.

Tool

Handsaw / jigsaw, (battery) drill, drills 2,3,4 and 5 mm, sink drill, screwdriver / bits, if necessary, dowelset

7 reviews for Working drawing children’s room Leon

  1. Koen

    Het heeft even geduurd, maar ze zijn af en het resultaat mag er wezen (al zeg ik het zelf). Dit heeft ook zeker te maken met de duidelijke werkbeschrijvingen. We hebben ervoor gekozen om bij zowel de commode als bij de kast een touch to open systeem te hanteren. Vandaar ook dat je geen knoppen ziet.
    Voor het zagen en in elkaar zetten heb ik gebruik mogen maken van de werkplaats van een bevriende aannemer. Dat was erg handig. Een tip voor degene die nog moeten beginnen is in ieder geval dat ze hun trapgat moeten meten. De kast is bij ons uiteindelijk via het raam de kamer in gekomen.

  2. Renske

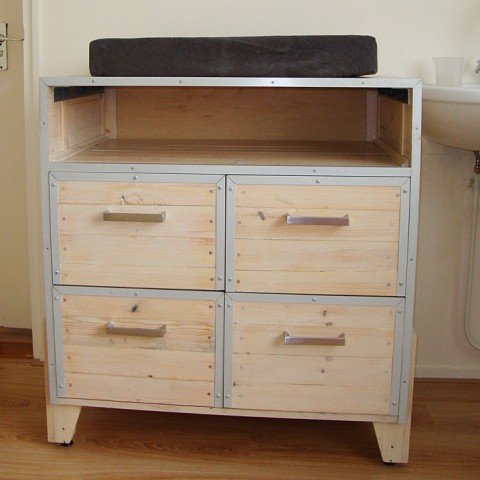

    Mijn man heeft de meubeltjes gemaakt van oude pallets van zijn werk. De planken gezaagd, geschaafd en geschuurd.
    Daarna heeft hij de planken met white wash wax behandeld.
    Bedankt voor de duidelijke info waardoor mijn man deze meubeltjes heeft kunnen maken. Een leuk en intensief project waar hij naar mijn idee erg trots op mag zijn. 🙂

  3. Jan

    Een tip: ik vond het verjongen van de poten veel makkelijker vanuit de koker, dus niet eerst met de cirkelzaag vier delen zagen en die dan verjongen, maar direct met de decoupeerzaag vanuit de koker in de juiste vorm zagen.
    Het was een leuk werk en hoewel ik veel heb aangepast was ik blij met de werktekeningen. Ze waren helder en ik kon er goed mee vooruit.

    De commode is nu ook klaar. Net als het bedje van wit gelakt MDF met Essen poten. Ipv 4 kleine laatjes nu 2 grote, vanwege de ruimtewinst.
    De bovenrand is ook van Essenhout, met aan de zijkant dezelfde maten als de poten.
    Ik hoop dat je het leuk vindt. Ik ben er in ieder geval best trots op.

  4. Jan

    Ledikantje was ongeveer 6 uurtjes werk (inclusief freezen van alle kantjes), met de commode ben ik iets langer bezig geweest, ongeveer 1,5 dag. Daarna alles laten spuiten in dezelfde kleur van de box die we hier hebben gekocht.

    Tekeningen en handleiding waren duidelijk, maar heb soms wel wat gewijzigd. Heb het ledikant demontabel gemaakt, en heb bij de commode bijna alles in verstek gemaakt, de poten, lades en de commode zelf ook. De achterplaat verzonken, en heb de kleine blokjes waar de meubels op staan achterwege gelaten.
    In de bijlage enkele foto’s van het resultaat, de ongespoten meubels en van mijn tijdelijke werkplaatsje.

  5. Rutger

    “De handleidingen op zich zijn duidelijk genoeg om tot het einddoel te komen. Wellicht is het een idee om kleine youtube filmpjes te posten waarbij je bepaalde stappen toelicht zoals bijvoorbeeld het frezen van de scharniersparingen. “

  6. I.B

    “Voor de kommode heb ik nog een los/extra opzetstuk gemaakt zodat we voorlopig iets meer werkruimte hebben. In de toekomst houden we er een mooie kast aan over! We hebben toch besloten om ook de kast “Leon” kinderkast te maken. Zo wordt het kinderkamertje een mooi geheel. Alles was redelijk eenvoudig te maken. Hoewel de kast toch het lastigste onderdeel was. Voor het mooi in lijn krijgen van de deuren was enig geduld en secuurheid nodig!”

  7. Janneke

    “Kinderkamer is helemaal klaar! We hebben hier en daar wat aanpassingen gemaakt, zodat het helemaal naar onze wens was. Het past allemaal heel mooi bij elkaar, de tekeningen hebben hier goed bij geholpen. We hebben al heel wat complimenten gekregen over de kamer, we zijn er erg blij mee!.”
