DIY wall mounted TV stand Arturo furniture plan

 14,95

English version PDF download

Make this floating TV cabinet Arturo yourself

Modern, sleek, hanging TV unit with sliding door. Other equipment, remote controls and DVDs stylishly tidied away! A flat screen TV can be hung above the cabinet, or placed on the unit itself. The TV cabinet hangs solidly on the wall, thanks to a hidden construction. With help from our DIY design plan, you can easily make this TV furniture yourself.
Material / wood not included

Categories: ,

Description

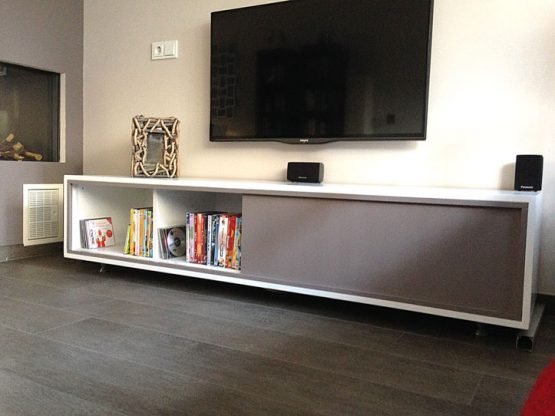

Floating TV stand ‘Arturo’, built by our customers with this manual

Click on the pictures to see more photos of self-made furniture, and to read about the experiences of those who made them.

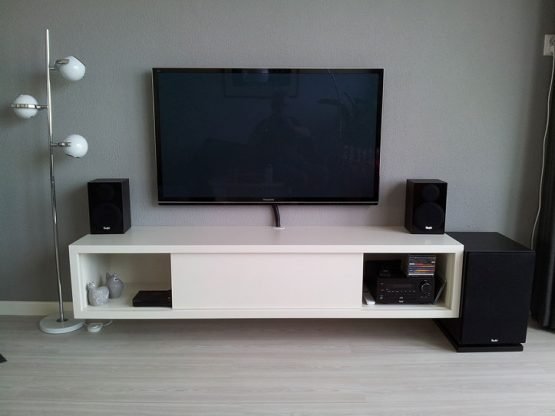

DIY floating TV stand 'Arturo' made by

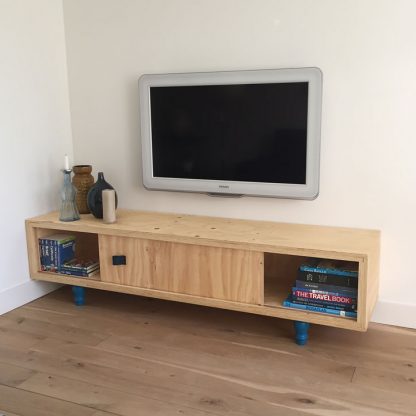

DIY floating TV stand 'Arturo' made by

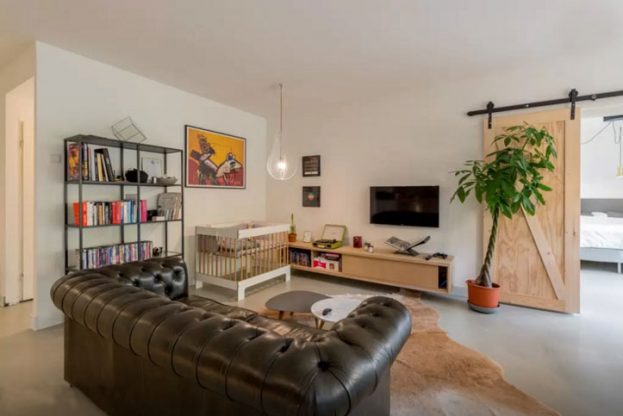

DIY floating TV stand 'Arturo' made by

Build this floating TV unit Arturo

Are you a handyman, or do you like to do-it-yourself? With the DIY blueprint of this TV stand, you will be able to make a very nice piece of furniture for your living room. In our plan with manual and diagrams, you will find smart woodworking tricks allowing you to make professional-looking furniture.
Or do you like the design of this beautiful TV cabinet, but you do not have enough confidence to build it yourself? You can of course ask a handy friend(s), family member or neighbor for help. Creating your own piece of furniture is immensely rewarding!

The design

TV cabinet Arturo has a sliding door. In the drawings two options are detailed: if you can cut a groove with a router or saw, you can mount the sliding door glides. But this is not even required: the second option that we describe, the “cold rolling” variant (without sliding gear), moves well and is ingeniously hidden. You will also find in the manual instructions on how the furniture is securely hung on the wall.
We have naturally tried to make the design as beautiful as possible. For this TV unit, we have taken particular account of a few things. We have tried as far as possible to hide all screws. We also detail how, in some places, you can use dowels to join pieces together, such that you don’t need any screws. If you want to paint the TV cabinet, you can neatly hide any remaining evidence of screws with help from some filler. In our tips for furniture makers, we describe how you can do this.
We always try to make our furniture as efficiently as possible from standard size sheet or board material. This TV stand can be made from only two standard 122 x 244 cm sheets of MDF or plywood and 2 pieces 6 mm for the back.
Finally, the design takes account of the capabilities and limitations of a typical DIY’er and their tools. If you have a hand saw (and in some cases a jigsaw) and a drill and know how to handle them, then you should be able to make all of our furniture. If you have access to professional tools, then of course it will be even easier.

… adjustments

As you might have already seen in the photos of clients who built this TV cabinet, it’s really easy to make changes to the dimensions and/or design, and many have done so. The clear cutting list and design drawings help to give you the confidence to make any changes you like.

The manual / design plan and drawings

The downloadable manual is in the form of an A4 booklet for you to print out yourself. At the start, you’ll find a list of necessities, such as the wood (board or sheet material), screws (size and quantity), glue, and any other parts. Also listed are the tools that you will need and a cutting list with dimensions of all the parts that make up the piece of furniture. TV stand Arturo also has a cutting plan, which shows the most optimal way to cut the individual pieces from standard-sized boards.
Each furniture plan contains a number of relevant tips about the choice of material, sawing, screws, glue, sanding, painting, varnishing, etc. When dowels are given as an alternative, there is also a detailed explanation so that you can get started with full confidence.
Below you can see three example pages from the furniture plan of TV cabinet Arturo.

floating tv unit diy furnitureplan preview Arturo

Additional information

Dimensions

D 44,7 x W 180 x H 35 cm.

Material

Plywood, or MDF, thickness 18mm, 2 sheets. Screws, preferably Torx, Spax or similar, white wood glue, material of choice for finishing: paint, varnish, stain, etc, sandpaper 120, 180 grit

Skills

Sawing (hand saw, jigsaw), drilling, fixing screws, gluing.

Tools

Handsaw / jigsaw, (Cordless) drill, Drill bits 2, 3, 4 & 5 mm, Countersink bit, Screwdriver / bits

Brochure A4 PDF

16 pages of A4 with cutting list, cutting diagram, clear drawings & instructions and useful tips

Dutch design

Professional design, sleek, stylish, spacious, playful, modern.

Flexible design

With the manual and drawings it’s easy to modify dimensions and/or the design to suit your own needs.

You can do it (too)!

The design takes account of the capabilities and limitations of the DIY’er and their tools.

Reviews

  1. Henk

    De kast is al een tijdje af en heb er veel plezier aan, tekening was duidelijk.

  2. Rene

    Dit was mijn 1e meubel maar had gelukkig hulp van een ervaren schoonvader! Wij hebben geen deuvels gebruikt maar houtlijm inclusief met voldoende schroeven. Even goed nadenken voordat je een schroef vanaf een zichtbare positie er in draait! Neem geen praxis MDF maar ga voor een solidere MDF plaat van de houthandel. Het is uiteindelijk namelijk een hoop gewicht wat in elkaar moet blijven hangen.

  3. Niek

    Het tv-meubel is af.
    alles voldeed aan de verwachtingen, super duidelijk en prettig om mee te werken!!
    Moest alleen wat stoeien om de snoeren te verbergen, maar da’s ook gelukt. Heb in het boven én in het onderblad een gat geboord en dat afgedekt met kunststof kabeltoevoer (voor bureaublad), van de zelfde leverancier als de schuifrails.

    Was zo enthousiast dat ik ook de nachtkastjes heb gemaakt.

    Ga in de toekomst weer een ontwerp van je maken denk ik. Vind de loungebank nl. ook erg mooi.

  4. Marielle

    Ik heb de meubel iets kleiner gemaakt. Ik heb het samen met mijn broer gemaakt en het was erg leuk om te doen. Tekeningen waren erg duidelijk!
    We hebben gisteren het meubel opgehangen, maar het is nog niet helemaal af. We willen het nog een kleur geven, maar hier alvast een voorproefje.

  5. Ronald

    Ik ben erg tevreden met mijn tv meubel. Duidelijke omschrijving en erg leuk om te maken.

  6. Marianne

    De tekeningen en beschrijving zijn meer dan prima. Ik vond de tips m.b.t het duvelen van panelen heel erg handig. Dat is dan ook heel goed gelukt.
    Veel plezier gehad aan het maken! Door de goede basis uitvoering veel ruimte voor eigen ideeën en variatie.
    Ga Arturo t.z.t nog wel ophangen.

  7. Richard

    Met veel enthousiasme heb ik het meubel in de meivakantie gemaakt. Het was erg leuk om te doen. Het volgende project wordt nu inderdaad de hoogslaper ‘Ana’… En voor in de toekomst denken wij al na over de picknicktafel Ordesa. Maar alles op zijn tijd.
